RGNL-60 Folding Window China Manufacturer: Size, Glass and Quote Specifications
Verified operating method, recommended size limits and RFQ inputs for developers, architects, contractors and importers evaluating a manual vertical folding window from China.
What the Product Page Confirms

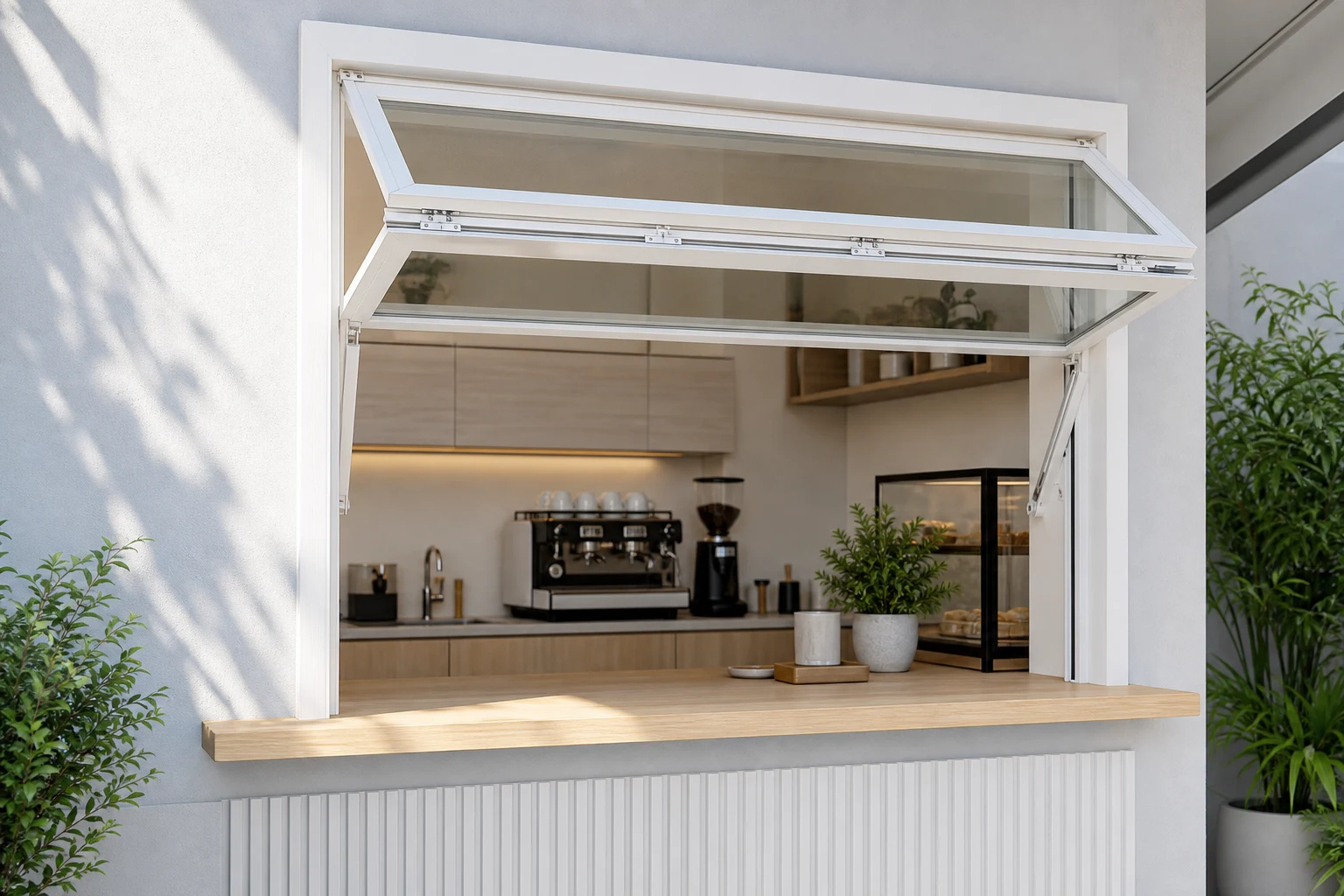

Rogenilan identifies this product as the RGNL-60 Series Folding Window. Its published configuration chart lists manual operation and a vertical folding opening method. This makes it a product-specific option for a service opening, hospitality counter or other project opening where the folded panels must be coordinated with the surrounding wall and counter.
Buyers can review the Folding Windows category and the official RGNL-60 Series product page. The values below reproduce the page’s 60 Series configuration limits; they are not inferred from another folding-window series.
Verified RGNL-60 Folding Window Specifications
| Item | Published RGNL-60 information | Buyer check |
|---|---|---|
| Product | RGNL-60 Series Folding Window | Use this exact series name on the schedule and quotation. |
| Operation | Manually operated | Confirm handle position, operating force and reachable height for the project. |
| Opening method | Vertical folding | Approve the folding direction and open-state clearance on a shop drawing. |
| Recommended width | Up to 3 m | Provide the finished unit width and rough-opening measurements. |
| Recommended height | Up to 3 m | Coordinate headroom, sill height and user reach. |
| Single-glazed total area | Up to 10 m² | Confirm glass thickness, treatment and required project standard. |
| Double-glazed total area | Up to 5 m² | Confirm complete build-up, weight and compatibility with the proposed hardware. |
| Customization support | Design-based customization and project design capability | Send drawings and define the required review deliverables. |
| Quality control | Finished product inspection and quality traceability | State the inspection records and traceability documents required before shipment. |
Configuration and Measurement Decisions
Manual Vertical Fold
The RGNL-60 is listed as manually operated. Show the closed and fully open positions so the factory can coordinate the folding path and clearances.
Single Glazing
The published total-area limit is 10 m². The quotation still needs the glass thickness, treatment and safety requirements for the actual opening.
Double Glazing
The published total-area limit is 5 m². State the complete insulating-glass build-up rather than asking for a generic double-glazed price.
White Frame Coordination
Request a white finish and submit the required color reference and gloss. Approve a physical finish sample before production because the RGNL-60 chart does not define one standard white.
The product page’s measurement diagram instructs buyers to measure opening width at the top, center and bottom and use the minimum value. Measure height at the left, center and right and use the minimum value. For opening depth, measure top, center and bottom and use the maximum value. Send all readings, not only the selected result, so the installation interface can be reviewed.
When the RGNL-60 Fits the Brief
The RGNL-60 is a relevant starting point when the opening can use manual vertical folding and remains within the published size and glazing-area limits. The 3 m width and 3 m height limits do not mean every 3 m by 3 m configuration is automatically valid: the glazing type also controls the stated total area.
If the proposed double-glazed area exceeds 5 m², or if electric operation is required, do not assume the RGNL-60 can be modified. Ask the manufacturer to review another published series or configuration. Keep the selected series visible on every drawing and price comparison.
What Changes the Factory Price
A useful price comparison requires the same defined scope. The page does not publish a standard unit price, so size, glass, finish, hardware, drawings, inspection, packing and delivery terms must be fixed before comparing suppliers.
- Finished width, height and quantity
- Single or double glazing
- Complete glass build-up
- Inward or outward folding direction
- Manual controls and hardware
- White color reference and gloss
- Shop drawings and samples
- Required test and QC records
- Export packing and protection
- Destination and Incoterm
Information to Send for an RGNL-60 Quote
Start with a dimensioned opening schedule, elevation, section and photos of the installation interface. Identify whether dimensions are rough-opening or finished-unit sizes and show the counter, sill, head condition and every nearby obstruction.
- Project location and building use
- Opening measurements at three points
- Quantity and unit references
- Required folding direction
- Single or double glazing
- Glass safety requirements
- White finish reference
- Required performance standards
- Inspection and traceability records
- Delivery scope and destination
FAQ
Is the RGNL-60 folding window manual or electric?
The official configuration chart lists the 60 Series as manually operated. Do not price an electric configuration as RGNL-60 without a separate manufacturer review.
What size limits are published for the RGNL-60?
The page recommends a width up to 3 m and a height up to 3 m. It also limits total area by glazing type: up to 10 m² for single glazing and up to 5 m² for double glazing.
Can the RGNL-60 use double glazing?
Yes. Double glazing is included in the published chart with a total-area limit of 5 m². The exact pane, spacer and treatment specification still needs factory confirmation.
How should the opening be measured?
Measure width at top, center and bottom and use the minimum; measure height at left, center and right and use the minimum; measure depth at top, center and bottom and use the maximum. Send every reading for review.
Are published performance icons enough for project approval?
No. Request the applicable standard, report, tested size, glazing and operating configuration before using a performance value in a project submission.
Request an RGNL-60 Folding Window Quote
Send Rogenilan the opening measurements, unit quantity, glazing, folding direction, white finish reference, documentation requirements, packing scope and destination. The manufacturer can review the defined project configuration before preparing a quotation.
