RGNL-100Z Special Shape Window China Manufacturer: Glass and Opening Specifications
Verified profile, glass, finish and opening information for architects, developers, contractors and importers preparing a custom special shape aluminum window quotation.
What the RGNL-100Z Product Page Confirms

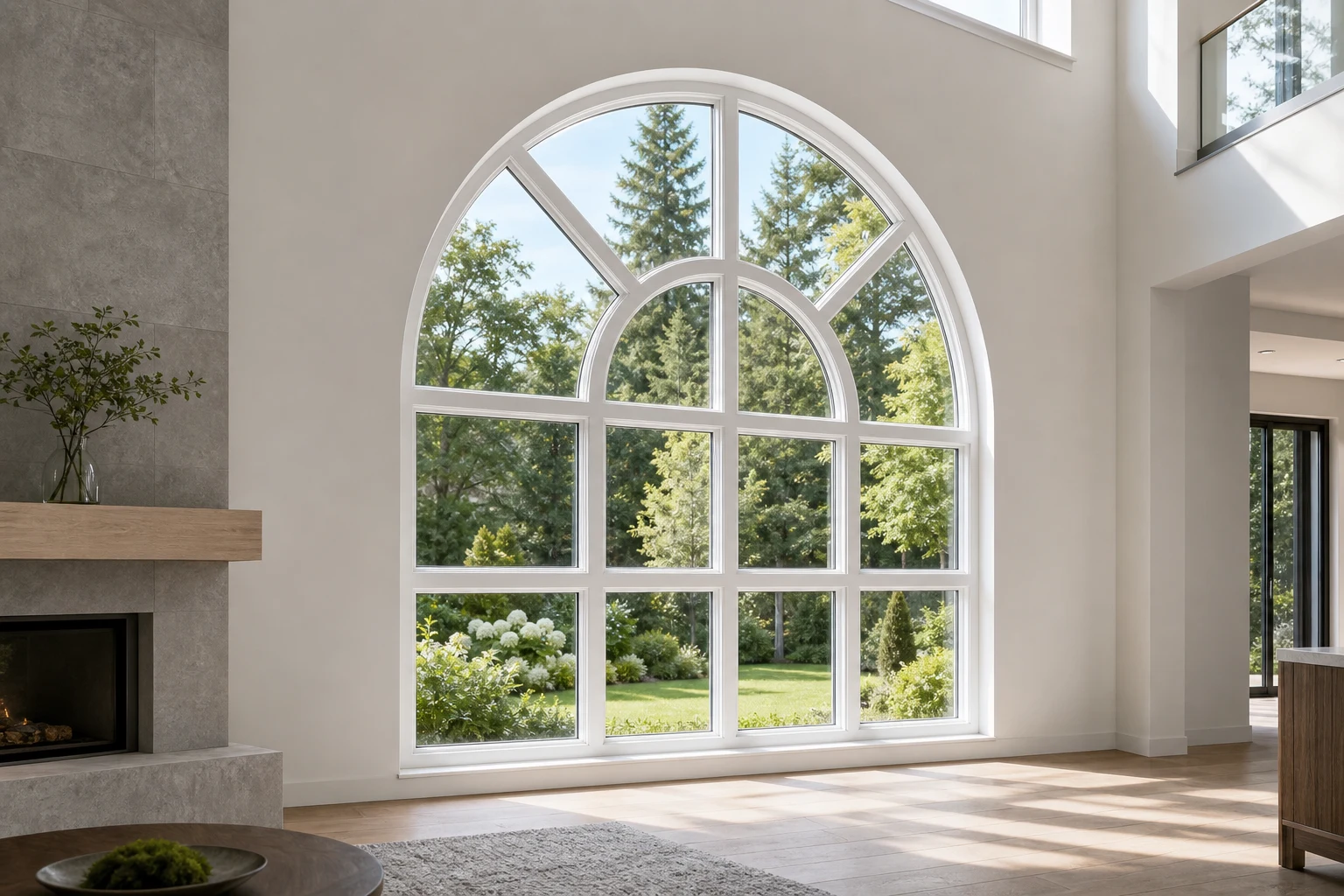

Rogenilan’s official page identifies the product as the RGNL-100Z Series Custom Special Shape Windows. Its imagery shows an arched window assembly, while the specification table lists several operable window modes. A project quotation must therefore define the overall geometry, every fixed division and each operable sash instead of using only the phrase “special shape window.”
Buyers can review the Specialty Windows category and the official RGNL-100Z product page. The page title uses “100Z,” while its specification table says “RGNL-100 Series.” Ask the quotation and shop drawings to state the final series code consistently.
Verified RGNL-100Z Special Shape Window Specifications
| Item | Official product-page information | Buyer check |
|---|---|---|
| Product name | RGNL-100Z Series Custom Special Shape Windows | Confirm the final 100Z/100 Series code on the quotation. |
| System width | 100 mm | Request the proposed frame section for every shape and junction. |
| Profile | 6063-T5 thermal-break aluminum profile | Confirm material documentation required by the project. |
| Aluminum thickness | 1.6 mm | Confirm this applies to the quoted members and geometry. |
| Glass choices | Tempered; double or triple tempered; laminated, Low-E, reflective or tinted glass | State the exact build-up and treatment for each pane. |
| Listed double glazing | 5 mm + 15Ar + 5 mm | Confirm spacer, argon specification, coatings and safety treatment. |
| Hardware | American-brand CMECH | Identify the hardware set, finish and opening-unit compatibility. |
| Opening modes | Inward opening, tilt-and-turn, outward opening and awning opening | Mark the selected mode and hinge side on every elevation. |
| Surface treatments | Powder coating, anodized, wood grain and PVDF coating | Approve color, gloss, texture and a physical sample. |
| Screen | Alloy wire mesh | Confirm screen location and compatibility with the selected opening mode. |
Opening Configurations Listed for the Product
Inward Opening
Show the interior swing zone, handle location and nearby finishes. Confirm whether the shaped area is fixed while a rectangular lower sash opens.
Tilt-and-Turn
Mark the tilt-and-turn sash separately from fixed shaped glazing and confirm hardware compatibility with the proposed sash size and weight.
Outward Opening
Coordinate exterior clearance, restrictors, access for cleaning and the selected screen arrangement before approving the elevation.
Awning Opening
Define hinge position, opening angle, control height and projection. Do not assume the curved head itself is operable without factory confirmation.
How to Define the Special Shape
A dimensioned drawing is essential. For an arched window, provide overall width and height, spring-line height, rise, chord and radius. For another custom geometry, provide every side length, included angle, centerline and datum. Identify whether dimensions refer to the rough opening, finished frame or visible glass.
Show mullions, transoms and operable sashes on both interior and exterior elevations. Supply a wall section through the head, jamb and sill so the manufacturer can review frame interfaces, drainage, anchors, trims and glass installation. A site template or verified survey may be needed where the opening is not geometrically regular.
What Changes the Custom Window Price
The product page does not publish a standard price. Compare quotations only when the geometry, frame, glass, hardware, finish, documentation, packing and delivery scope are the same.
- Overall dimensions and shape
- Radius, angles and segment count
- Fixed and operable divisions
- Selected opening mode
- Glass build-up and treatment
- CMECH hardware configuration
- White finish reference and gloss
- Shop drawings and templates
- Export crate and glass protection
- Destination and Incoterm
Information to Send for an RGNL-100Z Quote
Send editable CAD drawings where possible, together with a PDF schedule and site measurements. Number every unit so the quoted configuration can be traced back to the elevation.
- Project location and building use
- Rough-opening and frame dimensions
- Radius, chord, rise and angles
- Interior and exterior elevations
- Fixed and operable panel schedule
- Opening mode and hinge side
- Glass and safety requirements
- White color and finish sample
- Required reports and inspections
- Packing, destination and Incoterm
FAQ
What profile does the RGNL-100Z page list?
The product table lists a 100 mm-wide 6063-T5 thermal-break aluminum profile with 1.6 mm aluminum thickness. Confirm the proposed section and thickness for the actual custom geometry.
Which glass options are published?
The page lists tempered, double or triple tempered, laminated, Low-E, reflective and tinted choices. It also lists a 5 mm + 15Ar + 5 mm double-glazing build-up.
Can a special shape window include an opening sash?
The product page lists inward, tilt-and-turn, outward and awning opening modes. The elevation must show which portions are fixed and which open; feasibility depends on the approved geometry and hardware.
What is the maximum RGNL-100Z size?
The official page does not publish a maximum dimension or minimum radius. Send the complete geometry, glass and opening mode for written review.
Can a white frame be specified?
The page lists powder coating among the surface treatments but does not define one standard white. Submit the required color reference and gloss, then approve a physical sample before production.
Request an RGNL-100Z Special Shape Window Quote
Send Rogenilan the dimensioned geometry, elevations, opening schedule, glass requirement, white finish reference, documentation needs, quantity and delivery destination. The China manufacturer can review the defined configuration before preparing a custom quotation.
