RGNL Electric Lifting Window China Manufacturer: Motor, Glass and OEM Quote Specifications
Verified product data and practical quotation inputs for developers, architects, contractors and importers sourcing a vertically opening motorized aluminum window from China.
What Buyers Are Specifying

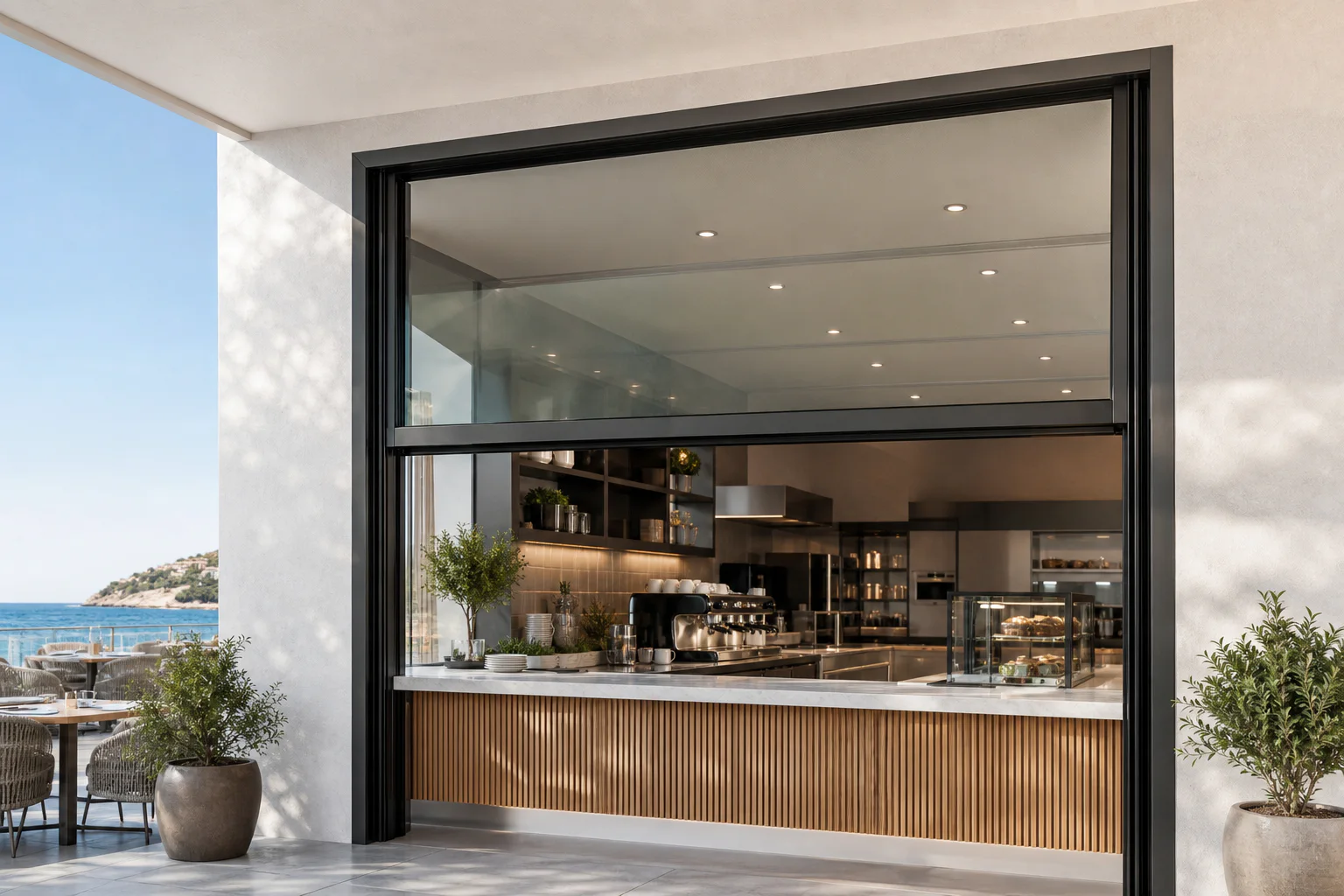

The RGNL Electric Lifting Window uses a motorized vertical opening method rather than an inward or outward swing. It can be considered for restaurant service openings, hospitality counters, terraces and other projects where the opening panel needs to move upward while keeping the surrounding circulation area clear.
Before requesting a price, review the Intelligent/Electric Windows category and the RGNL Electric Lifting Window product page. The quotation should identify the required opening size, fixed and moving panels, glass, frame configuration, motor controls and delivery destination.
Verified RGNL Electric Lifting Window Specifications
| Item | Official product information | Buyer check |
|---|---|---|
| Window type | Electric lifting window | Confirm moving and fixed panel layout. |
| Opening method | Electric lift-up / vertical up-down sliding retractable | Show the required opening position on drawings. |
| Profile | 6063-T5 aluminum | Confirm the proposed section for the opening size. |
| Thickness | 3.0 mm | Confirm that this applies to the quoted configuration. |
| Against-wall dimensions | 162 mm / 258 mm / 108 mm | Match the selected system to the wall and finish detail. |
| Visible surface | 85 mm / 76 mm | Review interior and exterior sightlines. |
| Opening-sash glass | 6 mm + 20AH + 6 mm or 8 mm + 15AH + 8 mm | Confirm glass notation and project safety requirements. |
| Fixed-panel glass | 8 mm + 15AH + 8 mm | Confirm fixed-panel locations and glass treatment. |
| Surface treatment | Whole-window electrostatic powder spraying | Provide color reference and sample requirement. |
| Listed components | Silent safety motor, control system, waterproof switch, 304 stainless-steel solid-bearing pulley and reinforced corner code | Request component schedule and control drawings. |
Motor, Control and Glass Decisions
Motor and Switch
Confirm motor location, access for inspection, switch position, power supply and how the system should respond during a power interruption. Ask for the wiring and control scope before coordinating electrical work.
Moving Panel
Show the required clear opening and final stopping position. The moving panel weight depends on size and glass, so it should be reviewed with the motor and pulley configuration.
Fixed Panel
Mark every fixed panel on the elevation. Fixed and moving areas may use different listed glass configurations and should not be combined into one vague line item.
Safety Review
Request confirmation of operating controls, obstruction protection, emergency operation and applicable local requirements. These points must be agreed for the actual project rather than assumed.
What Changes the OEM Price
A reliable quotation needs more than overall square meters. Price changes with opening width and height, moving-panel weight, fixed-panel area, glass build-up, frame configuration, motor and control scope, finish, accessories, packing and delivery terms.
- Number of electric opening panels
- Clear opening and travel distance
- Selected frame configuration
- Moving and fixed glass build-ups
- Motor, switch and control requirements
- Powder-coating color and samples
- Electrical drawings and documentation
- Protective export packaging
- Spare parts and maintenance access
- Destination and Incoterm
Information to Send for an OEM Quote
Send a dimensioned elevation, opening schedule and wall section. Identify the structural opening, finished opening, sill level, service-counter height, moving panel, fixed panel and required clear opening. Include quantity by size and project location.
For controls, state the power standard, switch location, preferred operating method and any connection required to a building control or safety system. Rogenilan should confirm feasibility and supply boundaries in writing before production.
- Project and application type
- Width, height and quantity
- Moving/fixed panel drawing
- Glass specification
- Frame and wall interface
- Finish and color reference
- Motor and control scope
- Power and switch requirements
- Testing or document requirements
- Shipping destination and Incoterm
FAQ
What is the verified opening method?
The official product table describes an electric lift-up, vertical up-down sliding retractable opening method.
Which glass configurations are listed?
The opening sash lists 6 mm + 20AH + 6 mm or 8 mm + 15AH + 8 mm. The fixed panel lists 8 mm + 15AH + 8 mm. Confirm the notation, treatment and local safety requirements for the order.
Can the size be quoted from an approximate opening?
A budget indication may be possible, but a production quotation should use dimensioned drawings because the listed size ranges vary by configuration.
What should be confirmed about the motor?
Confirm motor model, power requirement, control method, switch, access, safety functions, emergency operation, spare parts and the supplier’s wiring scope.
Request an Electric Lifting Window Quote
Send Rogenilan the elevation, opening schedule, glass requirement, finish, control requirement and delivery destination. The factory can review the suitable configuration before preparing an OEM quotation.
