RGNL-80 Heavy Lift Door China Supplier Glass Specifications
The official RGNL-80 product table lists tempered, double or triple tempered, laminated, Low-E, reflective and tinted glass families. It also publishes the notation 5 mm + 15Ar + 5 mm. Overseas buyers should convert these options into a complete glass schedule and obtain written approval before ordering from a China supplier.
Turn the Published Options into an Approval Schedule
The public RGNL-Aluminum Alloy Broken Bridge Heavy Lift Door page identifies the series as an 80 aluminum alloy broken-bridge heavy lift door. The Sliding Doors product category confirms its current product taxonomy.
The published list is a starting point, not a finished project specification. A purchase schedule should identify every pane, cavity, coating or interlayer, heat treatment, appearance requirement and applicable project document. Use the same revision on the quotation, sample approval and production drawing.
RGNL-80 Quick Specs for Glass Review
| Specification | Published RGNL-80 data | Buyer control |
|---|---|---|
| Series | 80 Aluminum Alloy Broken Bridge Heavy Lift Door | Repeat the exact series on the RFQ and drawings |
| Profile | 6063-T5 thermal-break aluminum profile | Keep the frame and glass schedule tied to this product |
| Aluminum thickness | 2.0 mm | Do not transfer the value to another series |
| Glass families | Tempered, double or triple tempered, laminated, Low-E, reflective or tinted | Define the complete project build-up for each door mark |
| Published notation | Double glazing tempered, 5 mm + 15Ar + 5 mm | Request a written definition of each layer and cavity detail |
| Track and panels | 139 mm two-track with two or four panels; 208 mm three-rail with three or four panels | Coordinate glass with the selected panel arrangement |
| Surface treatment | Powder coating, anodized, wooden grain or PVDF coating | Approve the frame finish separately from the glass appearance |
Only the structured product table is used for technical facts. No glass performance, certification, maximum size or code compliance is inferred.
Compare the Published Glass Families
Tempered and insulating configurations
The table lists tempered glass and double or triple tempered configurations. The buyer should state the required pane sequence, thickness of each pane, cavity details and any heat-treatment or marking requirement rather than writing only “double glass” or “triple glass.”
Laminated, Low-E, reflective and tinted options
These terms describe different specification choices, but the public table does not assign a universal performance value to them. For laminated glass, define the pane and interlayer build-up. For Low-E, reflective or tinted glass, define the approved appearance, coating or tint reference, orientation and sample acceptance criteria.
Clarify the 5 mm + 15Ar + 5 mm Notation
The official table prints “5 mm + 15Ar + 5 mm” for a double-glazing tempered option. Preserve that source notation when asking for a quotation, but request Rogenilan to define every component in writing. This article does not reinterpret the middle notation or promise a gas, spacer, coating, seal or performance value that is not separately documented.
For project approval, place the returned interpretation beside the glass build-up, door mark, selected track and panel layout. Any required thermal, acoustic, safety or regulatory result should be stated as a project requirement and supported by documents applicable to the quoted configuration.
Glass Approval Logic for Project Buyers
Start with the project location, door schedule and applicable design requirements. Assign a glass build-up to each door mark, then coordinate it with panel dimensions, moving and fixed panels, the 139 mm two-track or 208 mm three-rail arrangement, frame finish and installation interfaces.

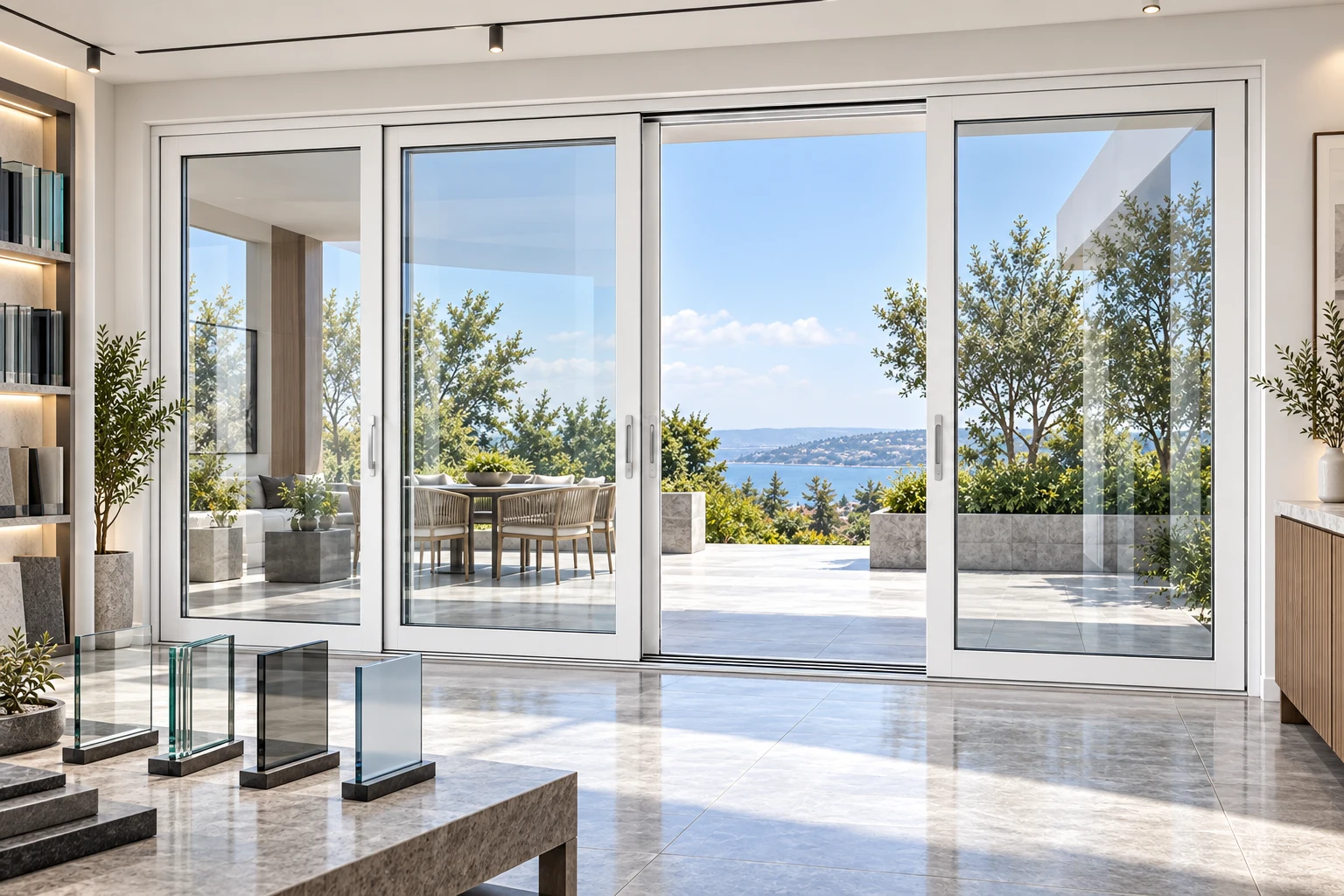

Review physical samples for color and reflectance under relevant lighting. Record the approved sample reference, viewing side and coating orientation. The white frame in the illustrative image reflects the preferred visual direction for this content; it is not presented as the only available finish or a standard-order claim.
Glass Specification and Quotation Factors
Quotation differences can reflect pane build-up, processing, laminate or coating selection, tint, unit size, quantity, panel arrangement, finish, sample work, documentation, protective packing, destination and delivery basis. Compare quotations only after these inputs are normalized.
Ask the supplier to identify the proposed build-up, included tests or documents, sample scope, exclusions, substitutions and drawing revision. Do not compare a basic family label against a fully defined project glass schedule as if they were equivalent.
RGNL-80 Glass RFQ Checklist
- Project location and door schedule
- Door marks, dimensions and quantities
- Complete pane and cavity build-up
- Tempered or laminated requirements
- Low-E, reflective or tint reference
- Coating location and viewing side
- Required project performance documents
- Two-track or three-rail selection
- Moving and fixed panel positions
- White or other approved frame finish
- Physical-sample acceptance reference
- Packing, destination and delivery basis
Send the glass schedule and elevations to Rogenilan for a product-specific return.
RGNL-80 Glass Specifications FAQ
Which glass families are published for the RGNL-80?
The official table lists tempered, double or triple tempered, laminated, Low-E, reflective and tinted glass options.
Is 5 mm + 15Ar + 5 mm a complete project specification?
No. It is the notation published in the product table. Buyers should request a written interpretation and add all required pane, cavity, coating, interlayer and approval details.
Does the public table publish glass performance values?
No verified universal thermal, acoustic or other glass performance value is stated in the structured table. Submit the project requirement and request applicable supporting documents.
Can the same glass schedule be used for every panel?
That should not be assumed. Assign the approved build-up to each door mark and coordinate it with panel size, movement and project requirements.
What should match before production release?
The quotation, glass schedule, sample approval, elevations, track and panel layout, frame finish and production drawings should use the same approved revision.
Confirm the RGNL-80 Glass Schedule
Submit the door schedule, complete glass build-up, appearance references, panel layout, frame finish, required documents and delivery destination for review.
