RGNL-80 Heavy Lift Door China Manufacturer Track Options
The official RGNL-80 heavy lift door table lists a 139 mm two-track option and a 208 mm three-rail option. Overseas buyers should select the track and panel layout together, then coordinate the sill, floor finish, opening direction, glass and installation interfaces before requesting a China manufacturer quotation.
Use the Official Product Identity
The public RGNL-Aluminum Alloy Broken Bridge Heavy Lift Door page identifies the series in its specification table as an 80 aluminum alloy broken-bridge heavy lift door. In natural procurement English, this article refers to it as the RGNL-80 thermal-break heavy lift door. The Sliding Doors product category confirms its current product taxonomy.
The number 80 is the published series designation, not the published track width. Track selection must use the separate 139 mm and 208 mm values shown in the product table.
RGNL-80 Quick Specs for Track Selection
| Specification | Published RGNL-80 data | Buyer control |
|---|---|---|
| Series | 80 Aluminum Alloy Broken Bridge Heavy Lift Door | Repeat the exact series on the quotation and drawings |
| Track widths | Two-track 139 mm; three-rail 208 mm | Select one layout for each door mark |
| Profile | 6063-T5 thermal-break aluminum profile | Confirm the returned section and interface drawing |
| Aluminum thickness | 2.0 mm | Keep the value linked to this exact product page |
| Glass families | Tempered, double or triple tempered, laminated, Low-E, reflective or tinted | Specify the complete project glass build-up |
| Published glazing notation | Double glazing tempered, 5 mm + 15Ar + 5 mm | Request written interpretation of every layer and cavity detail |
| Opening modes | Two tracks with two or four panels; three tracks with three or four panels | Show panel movement and viewing side on elevations |
| Surface treatment | Powder coating, anodized, wooden grain or PVDF coating | Approve the color, texture, gloss and physical sample |
Only the structured product table is used for technical facts. No load, performance, certification, maximum size or service-life claim is inferred.
139 mm Two-Track or 208 mm Three-Rail
Two-track configuration
The official table pairs the 139 mm two-track system with two-panel or four-panel opening modes. The buyer’s elevation should show which panels move, the stacking relationship, opening direction, handle side and interior/exterior orientation. Coordinate the 139 mm width with the sill support and finished-floor detail.
Three-rail configuration
The 208 mm three-rail option is listed with three-panel or four-panel arrangements. Treat it as a separate construction choice rather than an accessory added later. Review the wider sill zone, panel sequence, floor interface, cleaning access and installation drawing before production approval.
Track Approval Logic for Project Buyers
Begin with a door mark, finished opening dimensions, desired clear opening and panel arrangement. Mark every moving and fixed panel on an elevation. Then select the two-track or three-rail option and coordinate the published system width with the sill, jamb, head, floor finish and adjacent waterproofing details.

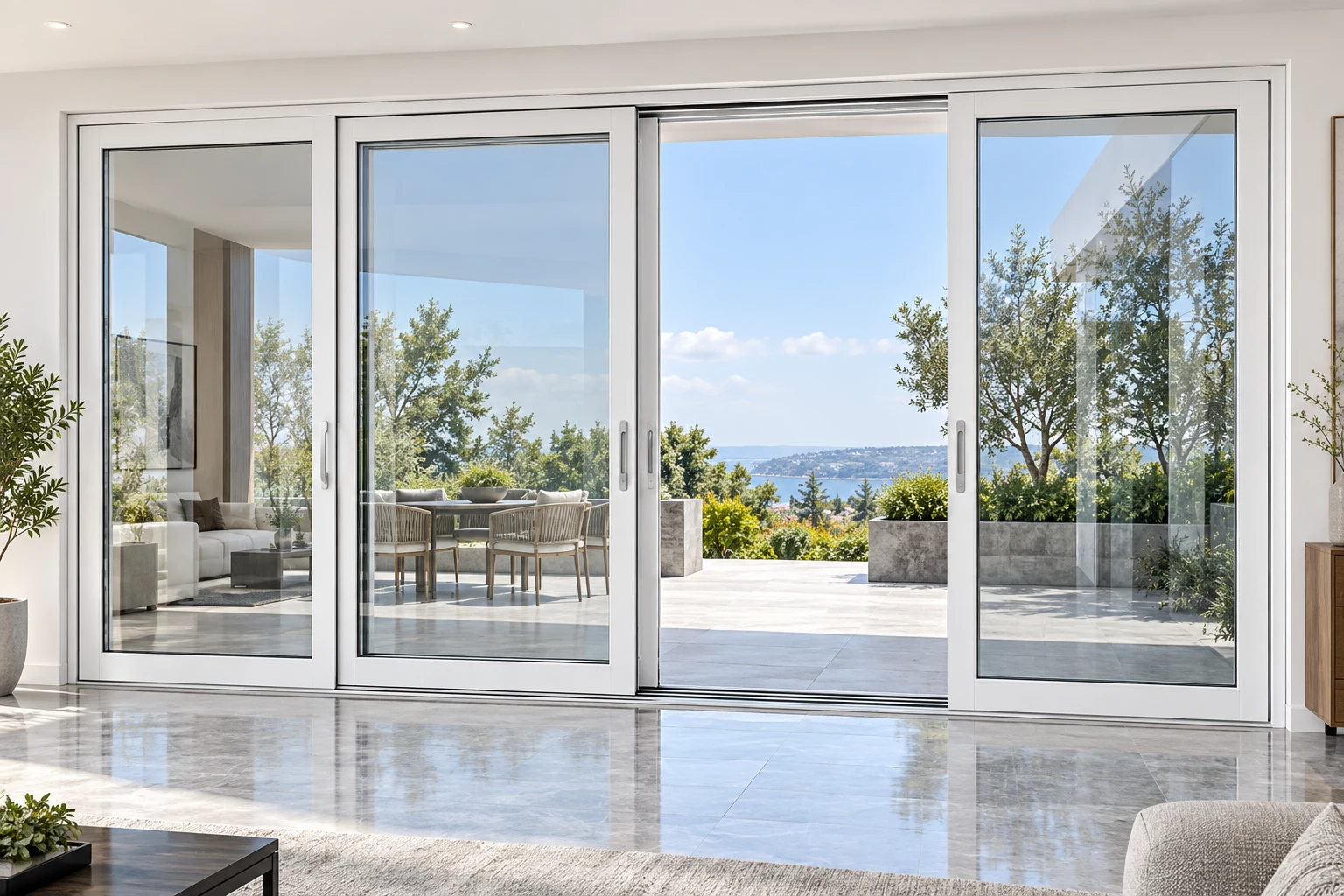

The public table does not publish universal fabrication limits, panel weights, drainage details or installation tolerances. Ask Rogenilan to return a product-specific drawing and confirm any project requirement in writing. The white frame in the illustrative scene is a buyer preference, not a standard-order color claim.
Track Configuration and Quotation Factors
Quotation differences can reflect track choice, panel count, unit dimensions, quantities, glass build-up, finish, hardware functions, sill and accessory scope, drawing revisions, protective packing, destination and delivery basis. A three-rail return should not be compared directly with a two-track return unless all other scope is normalized.
Ask the quotation to identify the selected series, track width, panel layout, included accessories, exclusions, proposed substitutions and drawing revision. Performance or compliance requirements should be supported by applicable documents for the quoted configuration.
RGNL-80 Track RFQ Checklist
- Project location and door schedule
- Door marks, dimensions and quantities
- Interior and exterior viewing sides
- Moving and fixed panel positions
- Two-track or three-rail selection
- Required opening direction
- Complete glass build-up
- Finish and physical-sample reference
- Sill, jamb and head interface drawings
- Required hardware functions
- Packing and access constraints
- Destination and delivery basis
Send the schedule and elevations to Rogenilan for a track-specific return.
RGNL-80 Track Options FAQ
Is 80 mm the RGNL-80 track width?
No. The official table uses 80 as the series designation and separately lists 139 mm for two tracks and 208 mm for three rails.
Which panel layouts are published?
The table lists two tracks with two or four panels, and three tracks with three or four panels. Final moving-panel positions should be shown on the approved elevation.
Does the public page give a universal maximum door size?
No verified fabrication size limit is stated in the structured specification table. Submit the actual opening and panel layout for product-specific confirmation.
What glass notation appears on the page?
The table shows a 5 mm + 15Ar + 5 mm double-glazing notation and lists several glass families. Buyers should obtain a written definition of the final pane build-up.
What must match before production release?
The quotation, door schedule, elevations, track choice, panel movement, glass, finish and interface drawings should use the same approved revision.
Confirm the RGNL-80 Track Layout
Submit the door schedule, opening dimensions, panel movement, glass, finish, interface details and delivery destination for a two-track or three-rail review.
