RGNL-100 Sliding Window China Exporter Packing Specifications
For an RGNL-100 export order, approve the window schedule first, then require a separate packing return that connects every opening mark to its package number, dimensions, gross weight, loose parts and shipment position.
What the Packing Specification Must Control
Rogenilan’s official page identifies the RGNL-100 Series Sliding Window and publishes its product-level options. It does not publish universal package sizes, package weights, loading quantities or one mandatory packing method. Those shipment values depend on the approved opening schedule and must be returned for the actual order.
Review the Sliding Windows product category and the specific RGNL-100 product page. Use the published facts below to identify the product; use an order-specific packing plan to control transport and site receiving.
Quick Specs for Packing Review
| Item | Verified Product Data | Packing Instruction |
|---|---|---|
| Product | RGNL-100 Series Sliding Window | Repeat the exact series and opening mark on the packing schedule. |
| System width | 100 mm | Keep this separate from finished-unit and package dimensions. |
| Profile | 6063-T5 thermal-break aluminum | Protect exposed corners and finished surfaces according to the approved packing return. |
| Aluminum thickness | 1.4–1.6 mm | Do not use this range to estimate shipment weight. |
| Layouts | Two tracks with two or four panels; three tracks with three or four panels | State whether panels and screens ship assembled or separately. |
| Glass families | Tempered, double or triple tempered, laminated, Low-E, reflective and tinted | Match the approved glass build-up to each opening and package mark. |
| Published double glazing | 5 mm + 9Ar + 5 mm | Confirm whether this source-listed option is the approved order build-up. |
| Screen | Alloy wire mesh | Give each separately packed screen its own traceable mark. |
| Finish routes | Powder coating, anodized, wooden grain and PVDF coating | Identify the approved finish and surface-protection requirement. |
Four Packing Records to Request
Window and Package Schedule
Connect the drawing opening mark, unit size, configuration and quantity to every package number. A site team should be able to locate a window without opening unrelated packages.
Returned Packing Plan
Require actual package dimensions, net and gross weight, unit count, protection method and handling orientation after the final order is approved.
Loose-Parts Register
List screens, hardware, trims, fasteners and other separately packed items by quantity and destination opening. Record the package that contains each item.
Loading and Handover Plan
Ask for package sequence, shipment grouping and the documents handed over with the goods. Container choice and loading quantity must use confirmed package data.
Match Packing to the Approved Window Layout
Start with a frozen schedule containing opening IDs, finished unit dimensions, quantities, track count, panel count, glass build-up, mesh location and finish. The packing plan should use the same revision. This prevents a two-track unit, three-track unit or loose screen from being assigned to the wrong opening.

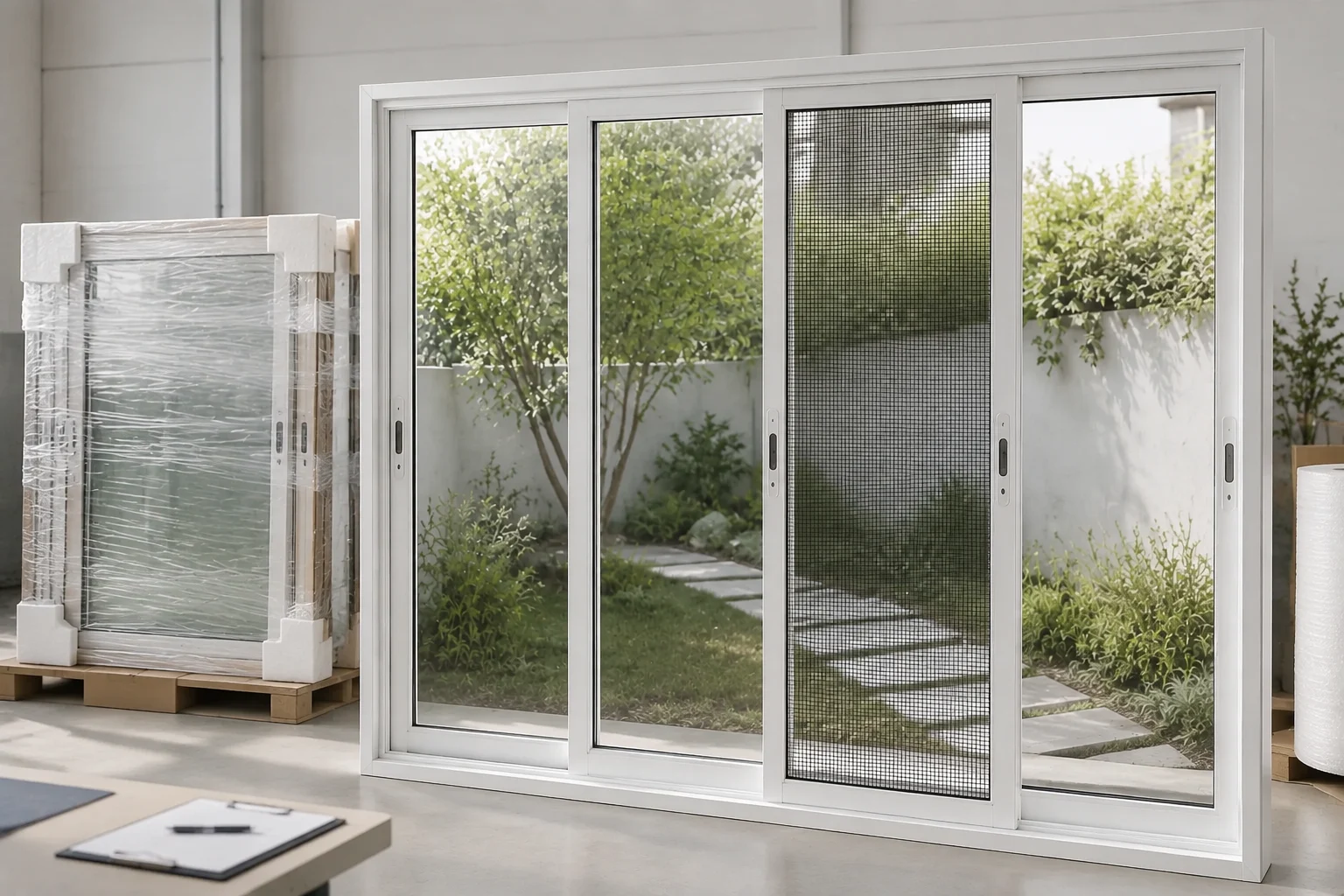

For large or multi-panel units, require the returned plan to state whether the complete frame, glazed panels and mesh travel together or as separate packages. If anything ships separately, the marks and loose-parts register must preserve the relationship between components and the parent window.
Also define receiving constraints: unloading equipment, maximum acceptable package size or weight, storage conditions, delivery sequence and floor or zone grouping. These are buyer inputs, not published RGNL-100 specifications, so they belong in the RFQ before the China export quotation is finalized.
Packing and Shipment Quote Factors
No verified public price covers every RGNL-100 order. Compare quotations only after each exporter has priced the same window configuration and packing scope.
- Finished unit dimensions and quantity
- Two- or three-track configuration
- Panel and mesh shipment arrangement
- Approved glass build-up and finish
- Required surface and corner protection
- Package grouping by building zone
- Inspection and photo-record scope
- Loose-parts identification method
- Destination and receiving restrictions
- Delivery term and handover point
RFQ Information to Send
- Project country, building and destination
- Controlled window schedule revision
- Opening IDs, sizes and quantities
- Track and numbered panel layout
- Glass, mesh, finish and hardware scope
- Assembled or separate-panel preference
- Site package limits and lifting access
- Zone, floor or installation sequence
- Required marks and language
- Inspection photos and packing records
- Requested shipment grouping
- Delivery term and receiving contact
Ask the returned quotation to identify exclusions and state when final package dimensions, gross weights and loading data will be issued. Freight planning should use those returned values, not assumptions from a typical window.
RGNL-100 Export Packing FAQ
Are RGNL-100 package dimensions published?
No. The official page publishes product information but not universal package dimensions. Request dimensions for every package after the window schedule and packing method are approved.
Can shipment weight be calculated from the 1.4–1.6 mm aluminum range?
No. Shipment weight also depends on unit size, profile allocation, glass, panels, screens, hardware and packing materials. Use the order-specific net and gross weights returned by Rogenilan.
How should separately packed screens or panels be marked?
Give each package a unique mark linked to the parent opening ID. The packing list and loose-parts register should show the same relationship.
Which product configurations are published?
The page lists two tracks with two or four panels and three tracks with three or four panels. The approved drawing must define the actual panel arrangement for each opening.
What should be checked before freight booking?
Confirm package count, dimensions, gross weights, handling orientation, shipment grouping, loading plan, delivery term and destination restrictions against the final packing return.
Request an RGNL-100 Packing Quote
Send Rogenilan the approved window schedule, package limits, site sequence, destination and required shipment records. The returned proposal can then connect verified product data to the actual packing and handover scope.
