Replacement Windows China Manufacturer Opening Measurements
Before ordering replacement windows from a China manufacturer, identify what each measurement touches and what will remain after removal. A visible opening, an existing frame and the proposed new frame are different boundaries. Use preliminary dimensions for an identified quotation basis, then release production only against the agreed survey and drawings.
Separate Replacement Scope from Product Choice

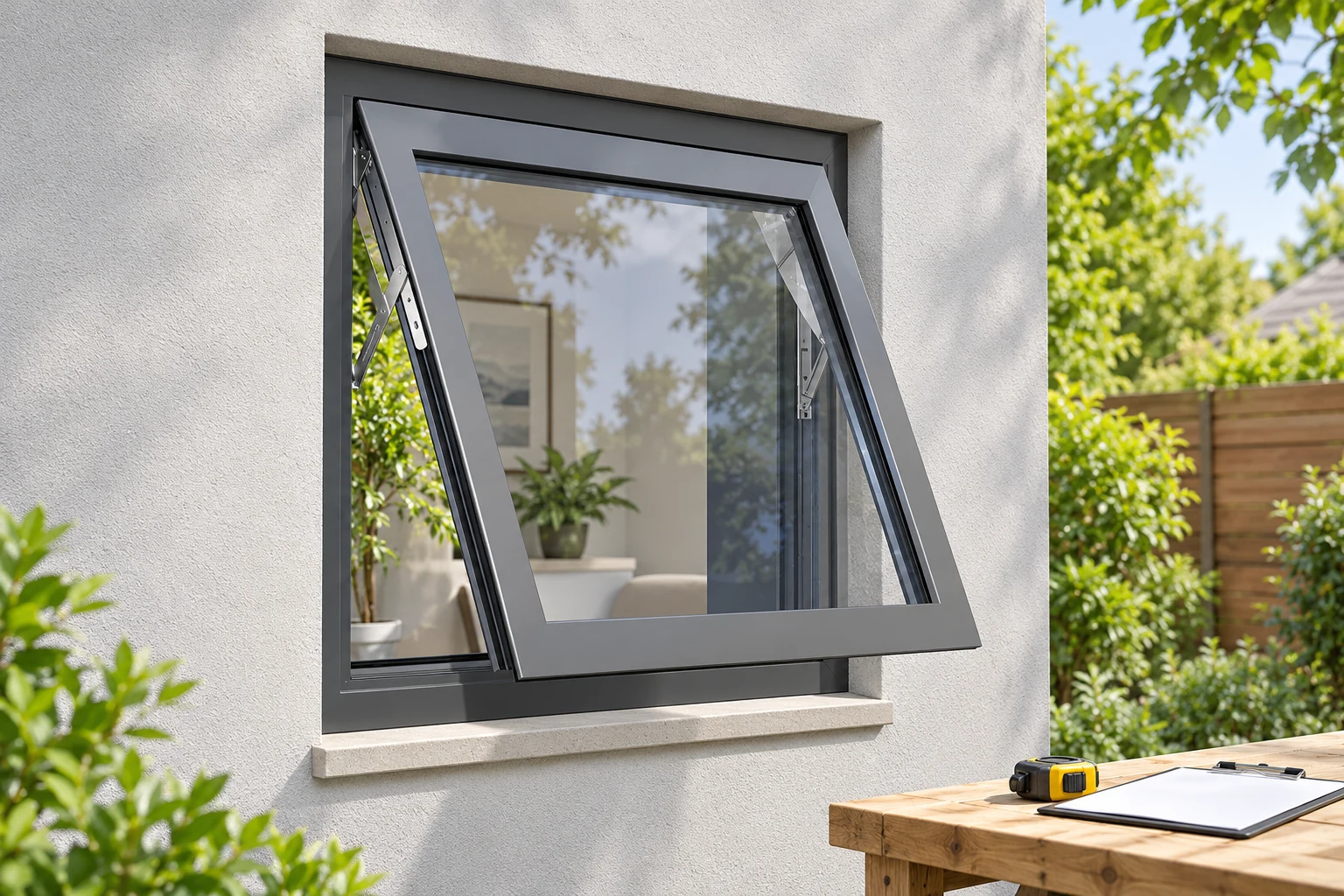

The official RGNL-60 Series Aluminum Casement Windows page provides a product basis for review, not proof that this system fits an existing opening or old frame. Its specification table describes an awning configuration and lists other opening choices. Confirm the exact configuration proposed for each location.
First mark the old frame, trim, sill and surrounding finishes as retained, removed or undecided. An undecided boundary is a quotation assumption, not a production dimension. The local project team must establish the proposed replacement method and verify the condition of anything retained.
Quick Specs for the Proposed Window
| Verified basis | What it does not settle |
|---|---|
| RGNL-60; 60 mm system width | Required wall opening or perimeter allowance. |
| 6063-T5 aluminum; 1.6 mm listed thickness | Compatibility with an old frame or existing support. |
| Inward, tilt-and-turn, outward and awning choices listed | Which operation clears the retained reveals and fittings. |
| Double/triple tempered, laminated, Low-E, reflective and tinted glass listed | The final assembly, dimensions or project performance. |
Request the selected head, jamb and sill sections. Neither the series number nor a photograph supplies a universal deduction, maximum size or installation tolerance.
Compare Two Survey Briefs
Complete frame removal proposed
Distinguish measurements taken against visible finishes from measurements of the boundary expected after removal. Record concealed edges as unverified. Arrange any necessary investigation and remeasurement through the responsible local professional; do not estimate hidden dimensions from the old sash size.
Existing components proposed to remain
Identify the retained components individually and submit sections showing their relationship to the new frame. Ask for a written feasibility decision. Retention is not an approved RGNL-60 insert-window option merely because it appears in the buyer’s brief.
Compare both proposals using the same desired finished appearance, opening function and responsibility for making good. Their visible glass areas and frame positions may differ; require dimensioned drawings rather than assuming equivalent results.
A Three-Stage Measurement Record
Give each opening a unique mark. Attach an annotated photograph with the viewed side and measurement endpoints. Keep the survey date, units and author beside the values, including readings that disagree.
| Stage | Record and release condition |
|---|---|
| Before removal | Visible faces, existing frame, sill and trim boundaries; identify hidden edges and assumptions. Suitable only for the stated preliminary quote. |
| After approved exposure or preparation | Actual receiving boundary, width/height readings, diagonals, levels and depth. Site reviewer resolves discrepancies and unfinished repairs. |
| Production approval | New frame dimensions and position linked to the accepted survey, sections and approved allowances. Buyer and responsible reviewers confirm one revision. |
Do not silently replace several unequal readings with one average. Show their locations so the project reviewer can establish the usable geometry. Any repair or finish change that alters a measurement endpoint requires the affected record to be checked again.
When the Quote Size Is Not the Order Size
Consider an illustrative opening R-01: its initial measurement runs between painted reveals, but the proposal removes trim and repairs one jamb. Keep the original quotation reference, add the revised survey and request a new frame-size return. The example describes a review decision, not a customer project or a numeric sizing rule.
Write the relationship explicitly: receiving opening, approved perimeter interfaces and proposed outer frame. Keep glass size and sash size on their own drawings. Ask who calculates each dimension and who authorizes release. Rogenilan’s product review does not replace local site measurement or installation design.
Compare the Replacement Cost Boundary
Separate the window supply from survey work, removal, disposal, opening repairs, trims, perimeter materials and local installation. State which party prices each item; do not treat an omitted line as included or free.
Changed frame dimensions, opening operation, glazing, finish or accessory scope can change the product quotation. Request a revised offer linked to the accepted survey rather than applying the original unit price to a different assembly. No standard replacement cost, minimum quantity or lead time is established here.
RFQ Inputs for Replacement Windows
- Opening marks, quantities, project location and delivery destination.
- Current photographs with measurement endpoints and viewed side.
- Retained, removed and undecided components, including finishes.
- Preliminary survey, unresolved edges and planned verification stage.
- Proposed RGNL-60 operation, glazing, finish and accessory requirements.
- Desired frame position and responsible site reviewer.
- Separate quotation assumptions and production-release requirements.
Ask the return to list exceptions against each opening, not only one general disclaimer. Keep units consistent across the site schedule and factory drawings.
Replacement Measurement FAQ
Can the old sash size be used for the new order?
Not as a substitute for the new outer-frame dimension. Identify the receiving boundary and obtain an approved frame-size drawing for the proposed replacement method.
Does 60 mm specify the installation gap?
No. It is the published system width. Perimeter interfaces and allowances need project-specific confirmation.
Can RGNL-60 fit inside an existing frame?
The public information does not establish universal insert compatibility. Submit the retained-frame sections and condition for a specific feasibility review.
Must hidden edges be guessed to obtain a quote?
No. Identify them as unresolved and state the preliminary quotation assumptions. Resolve the required geometry before production approval.
Submit a Replacement Opening Brief
Send the survey, photographs and removal boundaries to Rogenilan. Request a clearly identified RGNL-60 proposal with unresolved dimensions kept separate from the approved order.
