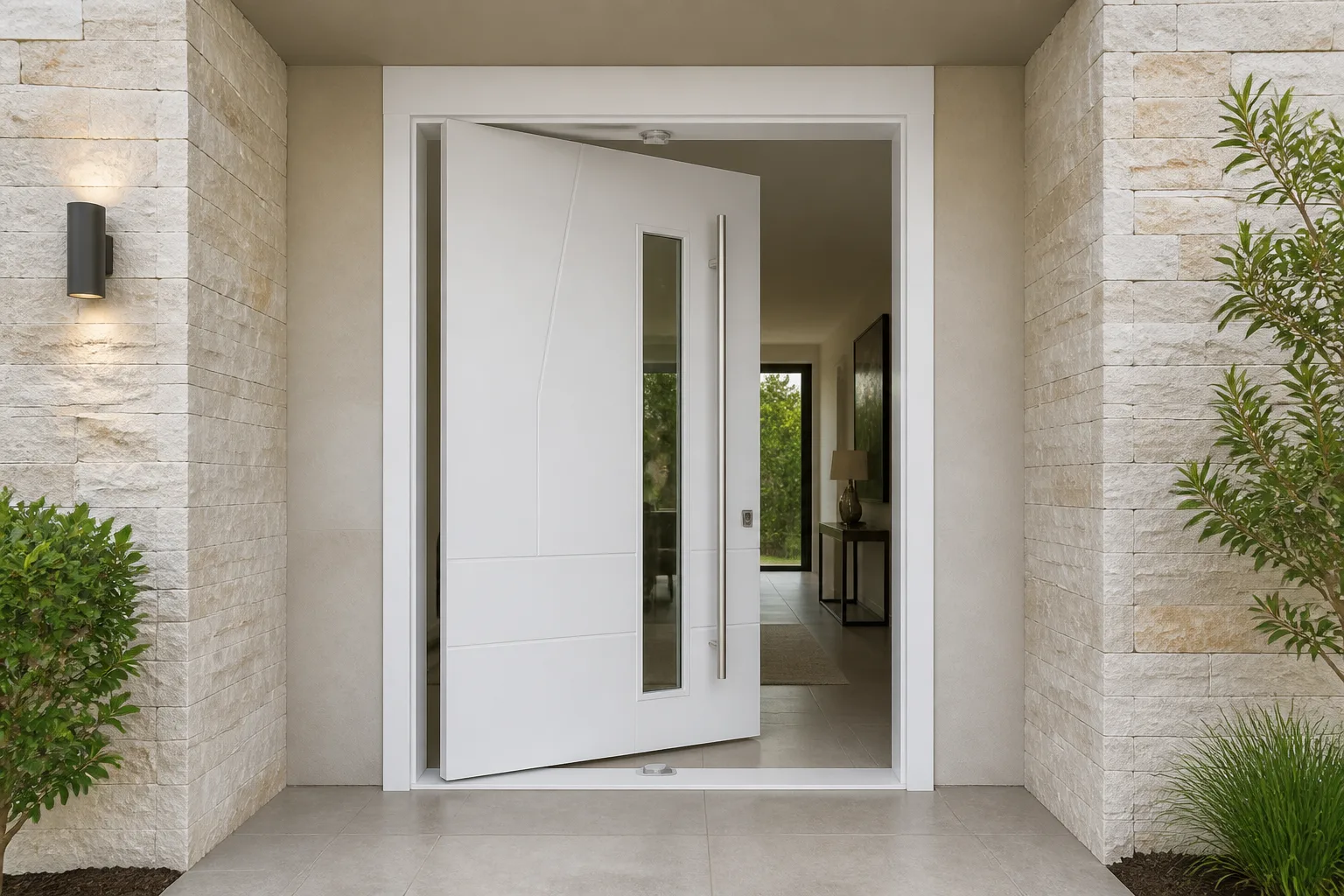

RGNL Cast Aluminum Pivot Door China Manufacturer Specifications
For a useful pivot-door quotation, buyers should define the opening, leaf dimensions, pivot position, material and glass arrangement, lock function, finish, handing and installation interface—not request a price from a reference photo alone.
Direct Answer for Project Buyers
The official RGNL Cast Aluminum Pivot Door page identifies a 3D-engraved entrance-door configuration made from aluminum alloy and glass. It lists a 2100 × 1260 mm reference size, custom sizing, a 50–100 mm leaf-thickness range, smart electronic or multipoint lock options, and inward or outward pivot opening.
These values are a starting point, not an automatic project approval. The final pivot axis, leaf weight, structural support, glass design, threshold, drainage, lock set and installation clearances must be coordinated through drawings before production. Buyers can also review the mapped Exterior Doors category.
Quick Specs to Verify
| Specification | Official product information | Order-stage confirmation |
|---|---|---|
| Item description | New 3D engraved armoured door | Confirm the approved elevation and whether the quoted unit is the pivot configuration. |
| Material | Aluminum alloy + glass | Define panel design, glass position and the exact approved material schedule. |
| Size | 2100 × 1260 mm reference size; customized sizes listed | Submit finished opening, frame size, leaf size and required clear passage. |
| Leaf thickness | 50–100 mm | Confirm the selected build-up for the approved size and hardware. |
| Lock | Smart electronic lock or multipoint lock | Specify access method, handle set, power interface and emergency operation. |
| Opening | Pivot door; inward or outward | Show interior/exterior view, pivot offset, swing path and nearby obstructions. |
| Finish | Solid-wood skin-friendly, high-gloss, matt, wax-oil and PU natural-wood wording is listed | Approve a physical color/finish sample; translated finish names require confirmation. |
| Package | Standard export carton with shipping marks | Confirm protection, crate requirements, package dimensions and handling points. |
Configuration Choices That Change the Door
Pivot position
An offset pivot creates a main passage and a smaller moving return. State the offset on the elevation because it affects clearance, balance and visual proportions.
Inward or outward opening
Coordinate the swing path with the porch, floor finish, drainage, furniture and local egress requirements before approving handing.
Smart or multipoint lock
Define the precise lock function and interface. “Smart lock” alone does not establish access modes, power supply, compatibility or emergency release.
Solid panel and glass
Submit an elevation locating every glass opening, handle and decorative line. Safety-glass and privacy requirements should be written into the order.
Selection and Drawing Review
Start with the structural opening and intended clear passage. A pivot leaf imposes loads through top and bottom pivot points, so the surrounding head, sill and substrate must suit the approved hardware and leaf configuration. Ask for coordinated shop drawings showing frame dimensions, pivot centerline, swing envelope, fixing locations, threshold and floor levels.
Cost Factors to Compare
- Overall frame and leaf dimensions
- Leaf thickness and panel design
- Glass area and required glass specification
- Pivot hardware and supported leaf configuration
- Smart or multipoint locking scope
- Handle and accessory selection
- Custom color, texture and sample approval
- Threshold and installation accessories
- Export protection and crate requirement
- Destination, Incoterm and documentation scope
What to Send for a Quote
- Project location and building type
- Door schedule and quantity
- Finished opening width and height
- Interior and exterior elevations
- Required clear opening
- Inward/outward swing and pivot offset
- Panel, glass and privacy design
- Lock and access-control requirements
- Finish reference and sample requirement
- Floor, threshold and wall details
- Required test documents
- Delivery destination and target date
FAQ
Can the RGNL cast aluminum pivot door be customized?
The official product table lists customized sizing and several finish choices. Confirm the final dimensions, design, glass, hardware and finish through approved drawings and samples.
What size is listed for the product?
The published reference size is 2100 × 1260 mm, while customized sizing is also listed. Feasibility for a requested size must be confirmed for the complete door and pivot hardware configuration.
Which lock options are listed?
The product page lists a smart electronic lock and a multipoint lock. Buyers should state the required access functions, power interface, handle, cylinder and emergency operation instead of selecting by name alone.
Can the pivot door open inward or outward?
Both directions are listed. The order drawing should show the viewed side, pivot offset and full swing path so the supplier can check the threshold and surrounding clearances.
What performance documents should a buyer request?
Request reports that match the project requirement and exact quoted configuration. Do not treat product-page marketing language or a category name as proof of fire, security, weather or acoustic performance.
Request a Cast Aluminum Pivot Door Quote
Send Rogenilan the opening dimensions, elevation, pivot position, opening direction, panel and glass design, lock function, finish, quantity, project location and delivery destination. The team can review the configuration and prepare a specification-based quotation.
