Description
| SERIES: | RGNL-120 Thermal Break Casement Door |
| Track width: | 120mm |
| Profile: | 6063-T5 Thermal Break Aluminum Profile |
| Thickness: | 2.0mm Aluminium Thickness |
| Glass: | Automotive Grade Tempered Glass
Double/Triple Tempered Glass Laminated/Lowe/Reflective/Tinted Glass |
| Middle Hollow: | Double Glazing Tempered 5mm+15Ar+5mm |
| Hardware: | American Brand CMECH |
| Surface
Treatment: |
Powder Coating,Anodized
Wooden Grain,PVDF Coating |
| Opening Mode: | Single-door、Unequal double door、Double door |

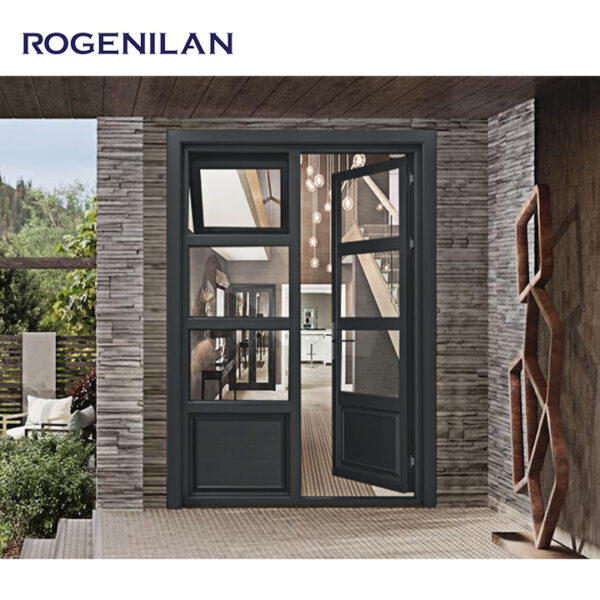

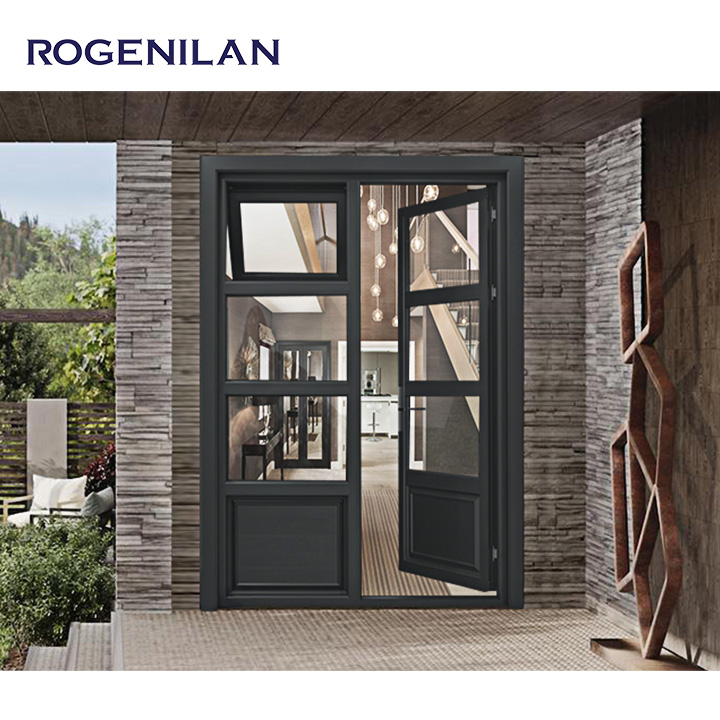

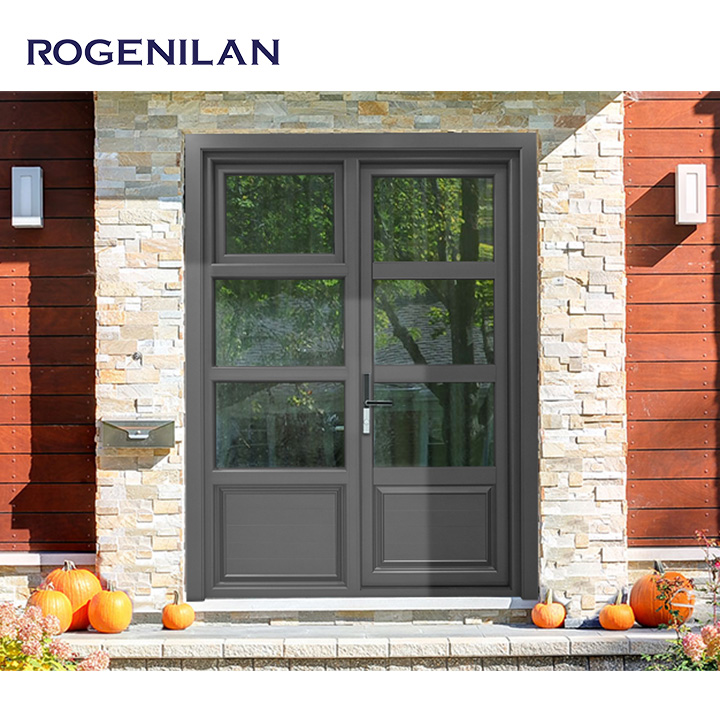

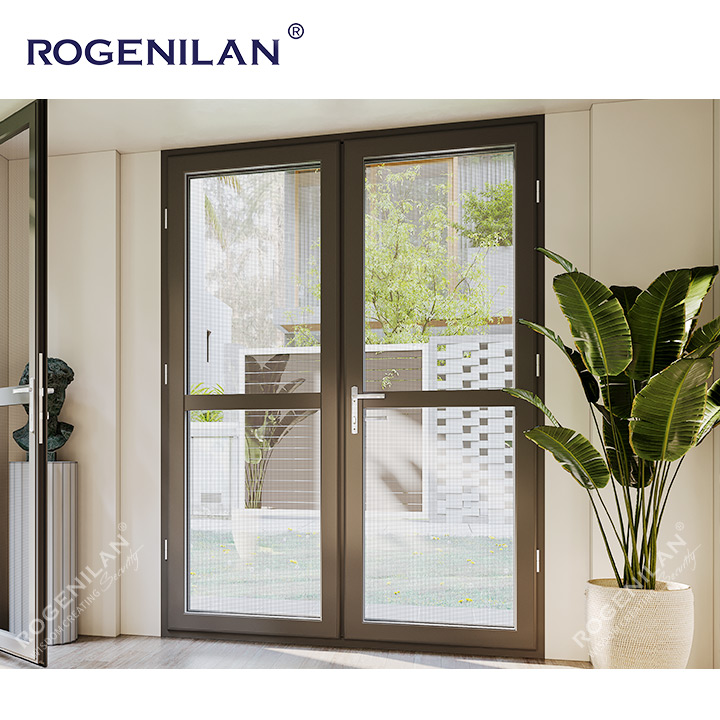

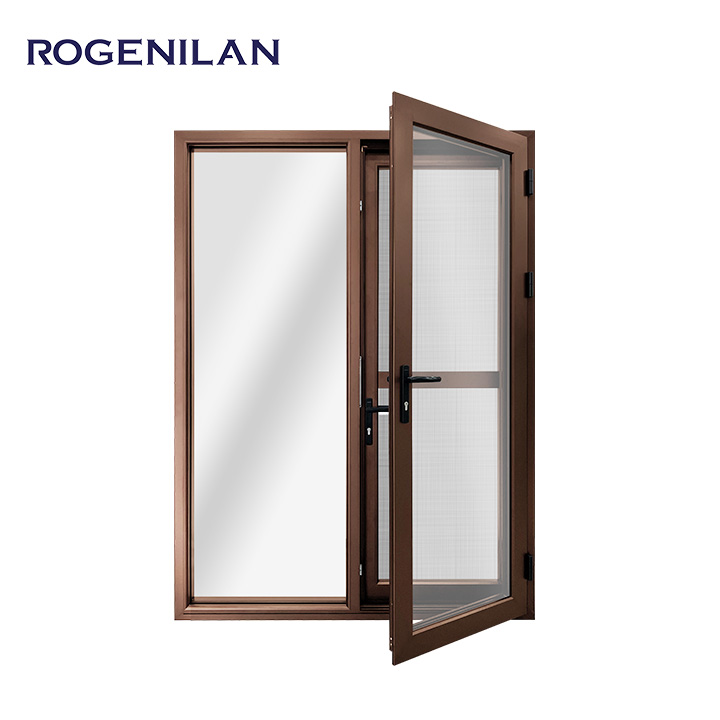

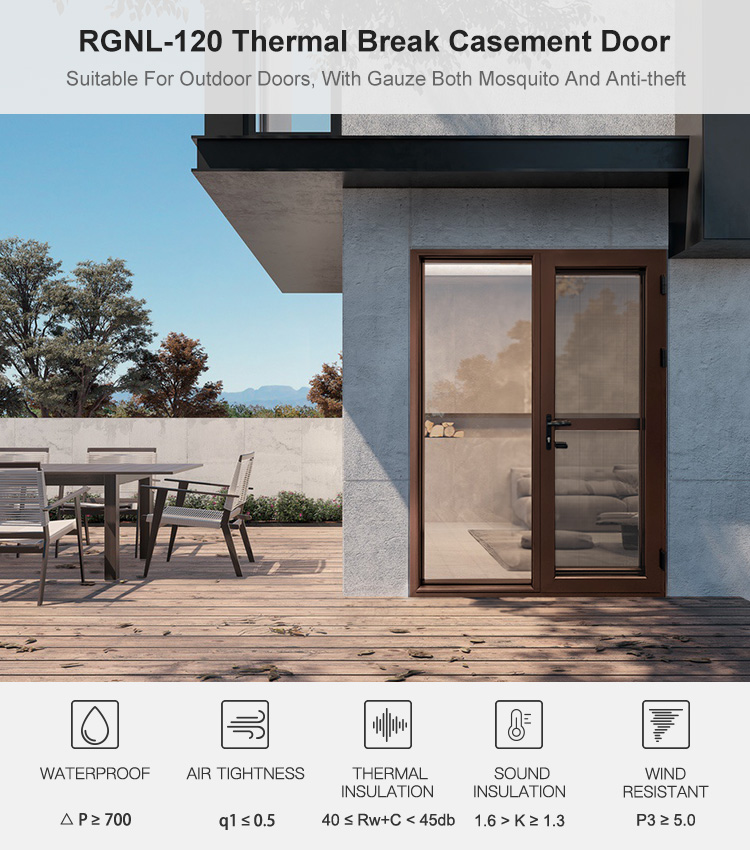

RGNL-120 Thermal Break Casement Door System
Crafted for precision performance, this 120mm thermal-break aluminum casement door merges energy efficiency with robust security. The 6063-T5 profiles (2.0mm reinforced walls) paired with 5mm+15Ar+5mm Low-E glazing achieve a U-value of 0.12 W/ft²·K (0.68 W/m²K), ideal for passive-house standards. CMECH multi-point locking hardware undergoes 50,000-cycle testing, supporting triple laminated glass configurations (EN 356 P5A impact-rated) or sound-insulated panels (48dB STC).

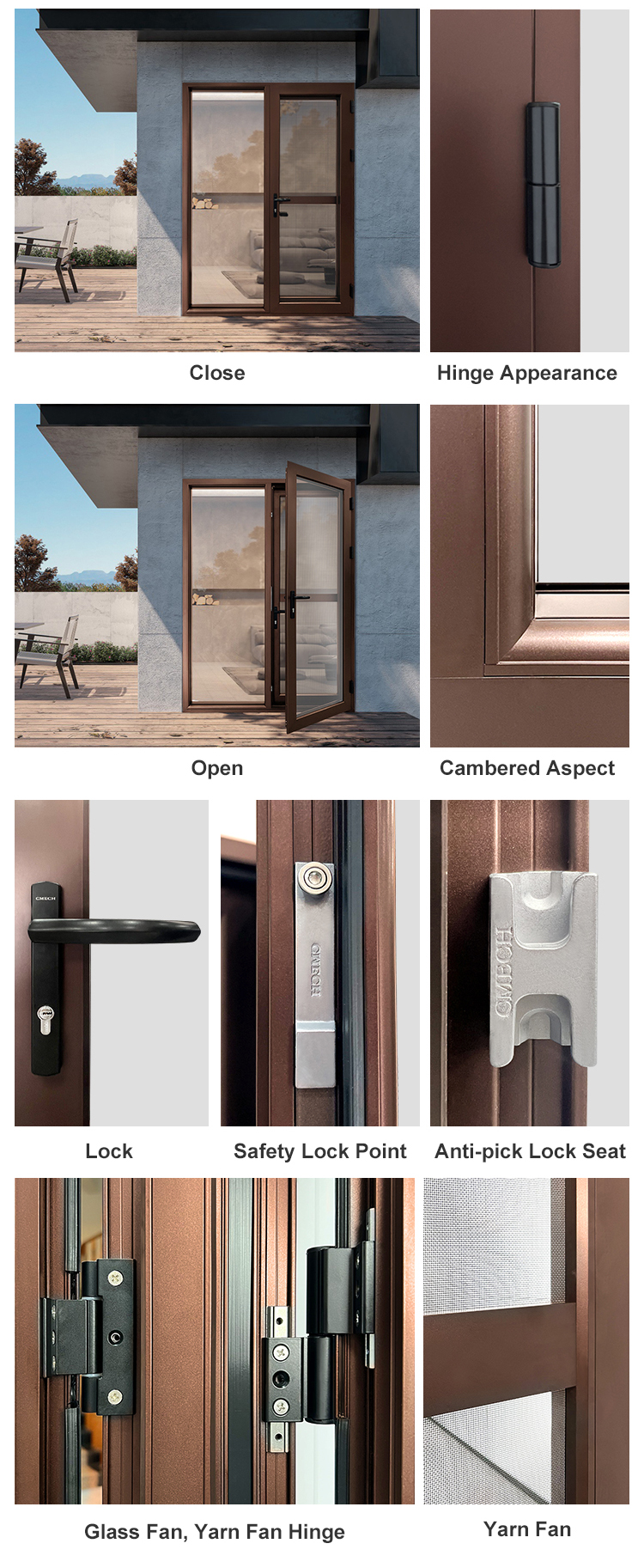

Customize single/double-door configurations with 14 finishes: corrosion-resistant PVDF coatings for coastal climates or anodized metallic tones for urban façades. The compression seal system (IP66-rated) withstands 3,000Pa wind loads and -30°C to 80°C thermal shifts, while the 3D-adjustable hinges (±10mm) accommodate structural settling.
Certified to EN 14351-1 and ASTM E283, this system combines 0.15mm manufacturing tolerances with architectural versatility—suitable for heritage conservation projects or hurricane-resistant modern villas. Optional smart sensors automate ventilation, blending timeless design with IECC-compliant thermal optimization.
